ACOPOWER 500W Mono RV Solar System

ACOPOWER 500W Mono RV Solar System

SKU HY-600AH3KW-500WMB
by ACOPOWER
$3,598.00 - $3,598.00
$3,598.00
$3,598.00 - $3,598.00
$3,598.00

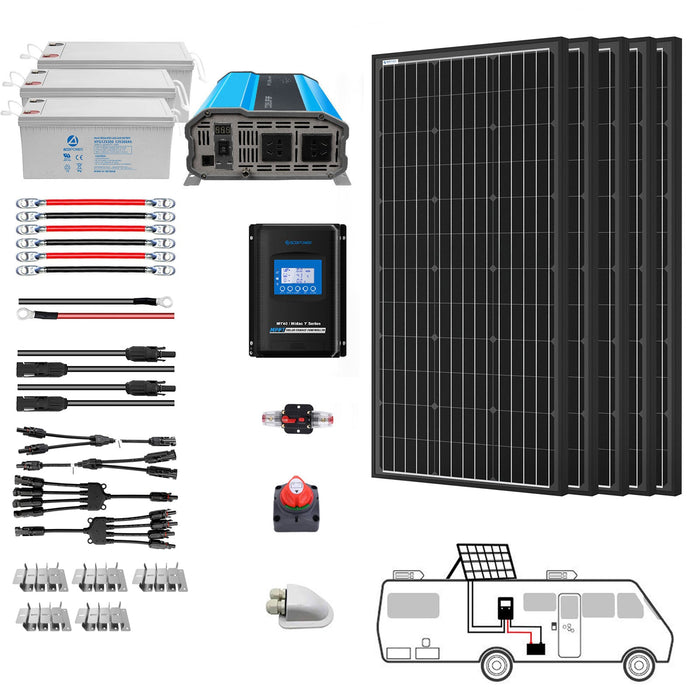

Ready to get energized? ACOPOWER's 500W Mono RV Solar System has everything you need to begin harvesting free, clean energy from the sky! Outfit your camping vehicle, boat, cabin, or backup power with this solar kit which includes 5 100W Monocrystalline Panels, a 3000W Inverter + cables, 3 200Ah Gel Batteries, a 40-Amp MPPT Controller, a 50A fuse, a battery switch, and an array of cables + mounting brackets.

ACOPOWER 500W Mono RV Solar System

Fun & easy peasy! You'll be living life off the grid in no time-- and feeling brighter, bolder, and more energized than ever! Plus, the durable construction means you'll be powering through life with confidence.

ACOPOWER 500W Mono RV Solar System Features:

  • Solar charging will provide about 2400 Watt Hours (Wh) or 200 Amp hours of charge per day (depending on sunlight availability)
  • Perfect kit for having an off-grid 12-volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, backup, and remote power use
  • Complete kit includes 5pcs 100 Watt Monocrystalline Solar Panels, 3pcs 200Ah Gel(Maintenance Free) Deep Cycle Batteries,3000W 3000 Watt DC to AC Power Inverter, 40-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets.

BUYER PROTECTION: We have an expert support staff. Should you feel dissatisfied, check out our easy return policy guidelines and reach out to us for any assistance.

ACOPOWER 500W Mono RV Solar System

ACOPOWER 500W Mono RV Solar System Specifications:

100W Monocrystalline Solar Panel

  • Nominal for 12V battery charger
  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V
  • Max Power Voltage(Vmp):17.48V
  • Short Circuit Current(ISC):6.14A
  • Max Power Current(Imp):5.71A
  • Weight:12.8 lb
  • Dimension:40.2*20.1*1.4 Inch
  • Application Class: Class A

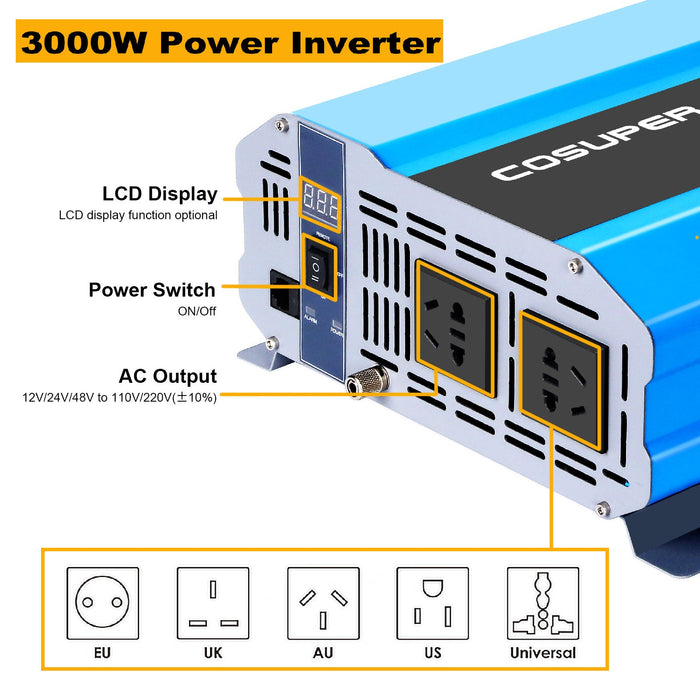

3000W Inverter 12VDC to 120VAC

  • Continuous output 3000W
  • Surge Power 6000W
  • Wave Form: Pure Sine Wave
  • Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
  • Weight: 12.1lb
  • Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

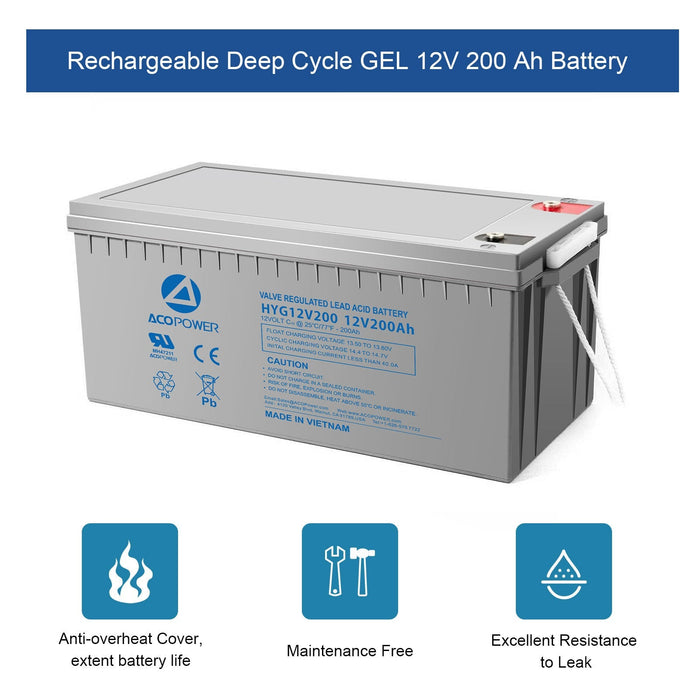

12V 200 Ah Rechargeable Deep Cycle GEL Battery

  • Nominal Voltage 12V
  • Rated capacity (10-hour rate): 200Ah
  • Dimension(inch): 20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
  • Approx. Weight: 62.5kg(137.5lbs)±3%

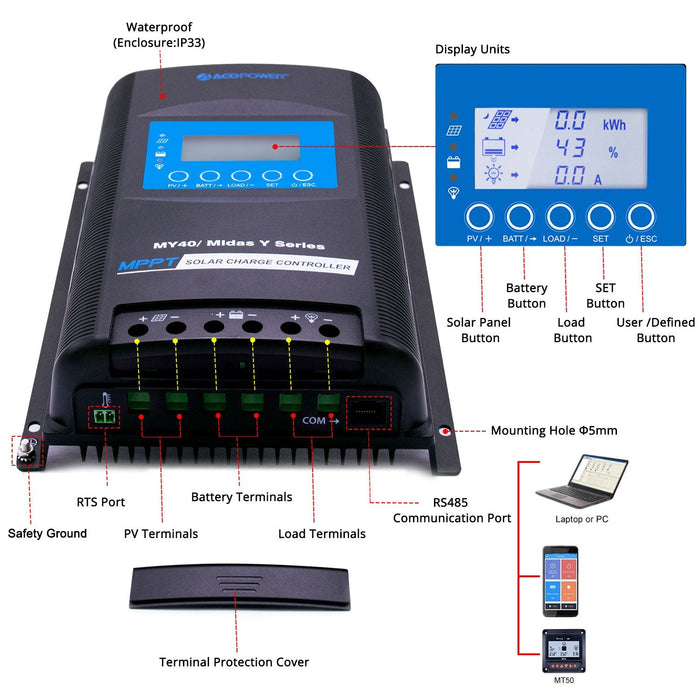

MPPT 40A Charge Controller

  • Rated charge current: 40A
  • Battery voltage range: 8V~32V
  • Max.PV open circuit voltage: 100VDC
  • Max.PV input power: 12V/520W,24V/1040W
  • Common positive grounding design
  • Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. LiFePO4 Multiple Load Control Method.

Package List:

  • 5PCS 100W Mono Solar Panel
  • 1PC 3000W Inverter
  • 3PC 200Ah Gel Battery
  • 1PC 40A MPPT Charge Controller
  • 1PC 50A Fuse
  • 1PC Battery Switch
  • 5 Sets Mounting Z Bracket
  • 2 Pairs 30ft 12AWG PV Cable
  • 3 Pair 1Ft 2AWG Battery Cable
  • 1 Pair 8FT 8AWG Tray Cable
  • 1PC Cable Entry Housing
  • 2 Pairs y branch solar panel connectors
