ACOPOWER 800W Mono Black RV Solar System

Original price $4,798.00 - Original price $4,798.00
Original price
$4,798.00 - $4,798.00
Current price $4,798.00

The ACOPOWER 800W Mono RV Solar System provides everything necessary for generating cost-efficient, renewable power from the sun! This is an ideal solar system solution for RVs, boats, cabins, and backup power sources. The 800 Watt Solar Kit comes complete with 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (Inverter Cables included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, 50A Fuse, Battery Switch, and all essential cables and solar mounting Z Brackets.

ACOPOWER 800W Mono Black RV Solar System

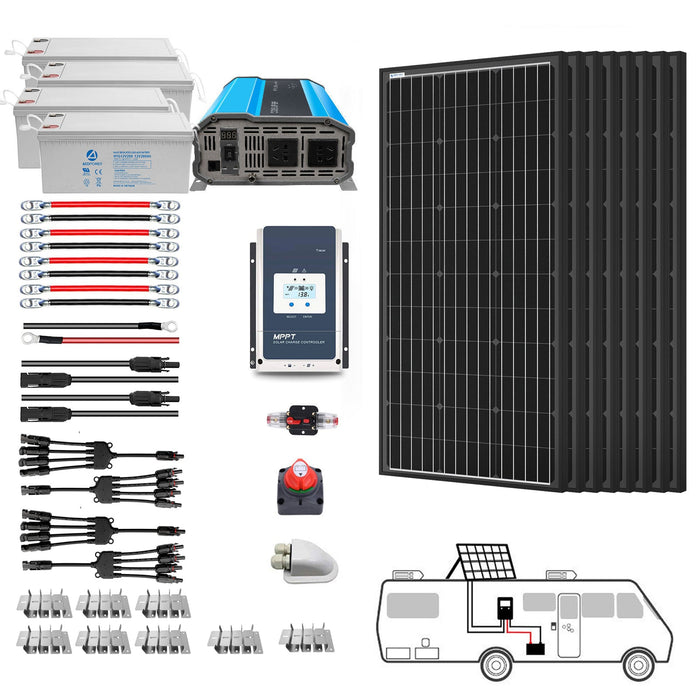

All components and technical specifications are clearly depicted in the product photo above. The system is expandable and can be easily installed in most locations. It's powerful, reliable, and designed to work in the most extreme conditions. Even with minimal maintenance, the ACOPOWER 800W Mono RV Solar System provides reliable energy solutions for years to come.

ACOPOWER 800W Mono Black RV Solar System Features:

  • Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depending on sunlight availability)
  • Perfect kit for having an off-grid 12-volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, backup, and remote power use
  • Complete kit includes 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets.

BUYER PROTECTION: We have an expert support staff. Should you feel dissatisfied, check out our easy return policy guidelines and reach out to us for any assistance.

ACOPOWER 800W Mono Black RV Solar System

ACOPOWER 800W Mono Black RV Solar System Specifications:

100W Monocrystalline Black Solar Panel

  • Nominal for 12V battery charger
  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V
  • Max Power Voltage(Vmp):17.48V
  • Short Circuit Current(ISC):6.14A
  • Max Power Current(Imp):5.71A
  • Weight:12.8 lb
  • Dimension:40.2*20.1*1.4 Inch
  • Application Class: Class A

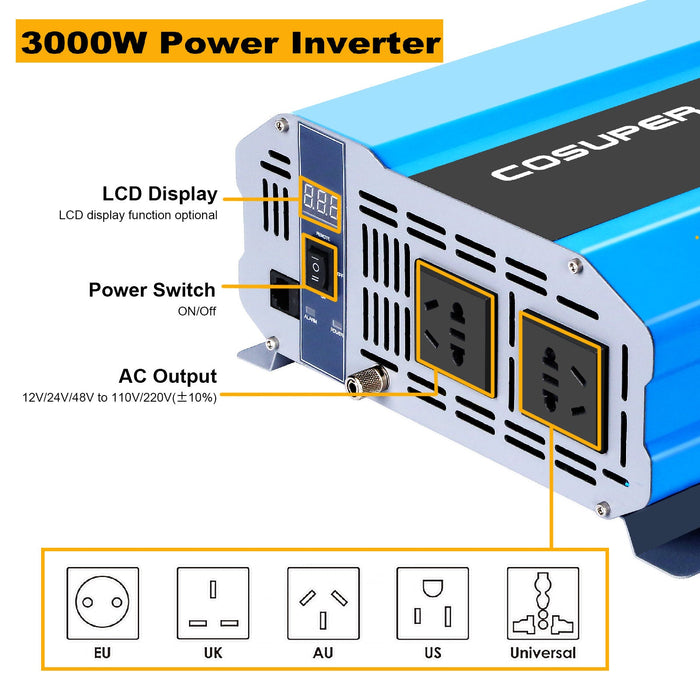

3000W Inverter 12VDC to 120VAC

  • Continuous output 3000W
  • Surge Power 6000W
  • Wave Form: Pure Sine Wave
  • Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
  • Weight: 12.1lb
  • Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

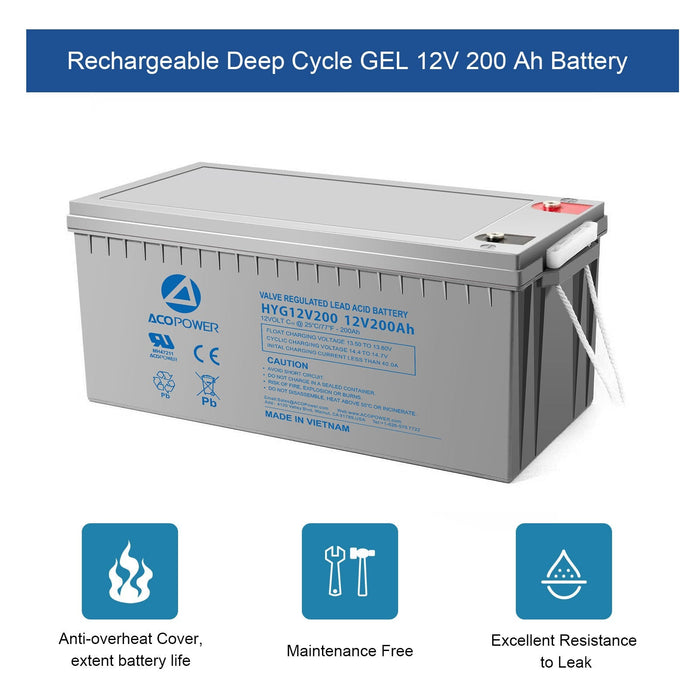

12V 200 Ah Rechargeable Deep Cycle GEL Battery

  • Nominal Voltage 12V
  • Rated capacity (10 hour rate): 200Ah
  • Dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
  • Approx. Weight: 62.5kg(137.5lbs)±3%

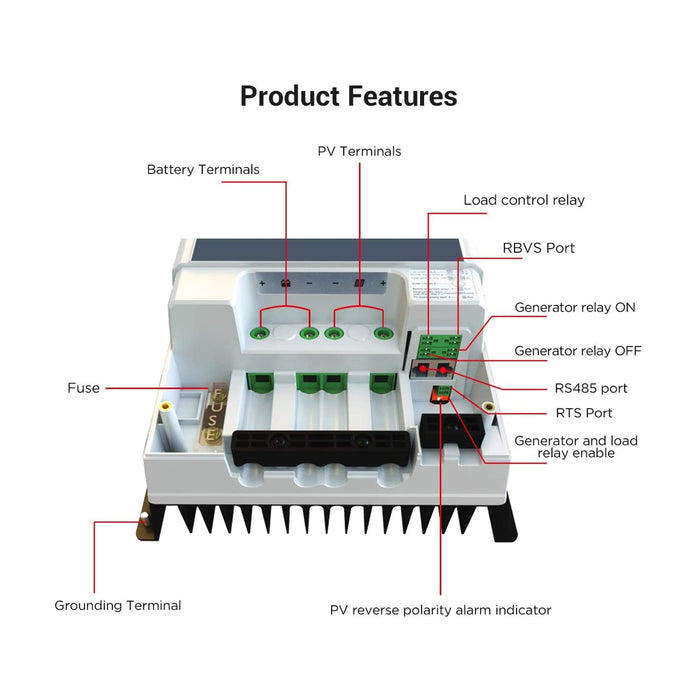

MPPT 60A Charge Controller

  • Rated charge current: 60A
  • Battery voltage range: 8V~68V
  • Max.PV open circuit voltage: 150V
  • Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
  • Common positive grounding design
  • Compatible with Various Deep Cycle Battery options: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

Package List:

  • 8PCS 100W Mono Solar Panel
  • 1PC 3000W Inverter
  • 4PC 200Ah Gel Battery
  • 1PC 60A MPPT Charge Controller
  • 1PC 50A Fuse
  • 1PC Battery Switch
  • 8 Sets Mounting Z Bracket
  • 1 Pair 30ft 12AWG PV Cable
  • 4 Pairs 1Ft 2AWG Battery Cable
  • 1 Pair 8FT 8AWG Tray Cable
  • 1PC Cable Entry Housing
  • 7 Pairs y branch solar panel connectors
